AnkerMake M5 3D Printer

Description
The M5 from AnkerMake prepares the versatile world of 3D printing for the future with sure stride! Higher speed and accuracy, top-notch quality, and an integrated AI recognition system are just a few of the keywords used to describe this incredibly intelligent printer!

Integrated die-cast aluminium alloy frame

The M5 has a sleek, modern yet very sturdy design with excellent features and recognition value! The integrated structure is made of a sleek-looking die-cast aluminium alloy. The Z-axis has a larger cross-section, which on the one hand increases the weight of the base and on the other hand reduces the centre of gravity of the entire 3D printer. Such a design not only ensures stability at tremendous speeds but also reduces any installation errors and improves printing precision.

The sleek Z-axis design avoids cable tangles.

Large build volume

With a build volume of 235 x 235 x 250 mm, the M5 allows the printing of large models.

High-speed printer reduces print time by 80% overall

The AnkerMake M5 operates at a standard print speed of 250 mm/s, reducing the print time by 69% compared to other printers. The printer allows excellent acceleration up to even 2500 mm/s.

The printer is equipped with PowerBoost™️. This optimises power with a transmission system on the Y-axis, ensuring incredible precision at extremely high speeds. Thanks to a speed update to PowerBoost™ 2.0, print time is now reduced by a total of 80% - so in high-speed mode, the printer operates at an incredible 500 mm/s and at an acceleration of 5000 mm/s!*

Thanks to a powerful stepper motor, a dual-belt drive shaft, a stabilised motion algorithm and other additional features, fast printing is guaranteed.

*For more details on the speed update and other updates to AnkerMake M5, please click here.

Detailed accuracy of 0.1 mm

As far as quality is concerned, M5 doesn't compromise! Even at 5x speed, it leaves wonderfully smooth surfaces.

Newly developed Ultra Direct extruder for incredible precision and detail

To ensure high-speed printing, the M5's extruder is equipped with a multi-stage gear system and uses a gear ratio of 9.37 with a torque of 0.8 Nm. Due to the strong torque exerted on the melt chamber, the extrusion is accelerated.

The extruder's heating block has also been enlarged. Its 60-watt heating block raises the nozzle temperature to 200 °C very quickly - that's 1.5 times faster than conventional 3D printers! This ensures that at fast speeds of 250 mm/s, the filament is discharged without any problems.

The new extruder system also has more airflow. This comes from the fact that the extruder's dual cooling system uses a pair of fans that expel 1.3 times more air at the maximum speed than other, conventional printers. This not only prevents stringing but also ensures rapid cooling of the printed model.

Powerful processors

The M5 is incredibly powerful - the printer features two heterogeneous 3-core processors (1.2 GHz x2 + 240 MHz):

XBurst CPU for intelligent printing,
Marlin CPU for routine processing.
In addition, it specialises in image recognition (VPU, ISPx2, CIM) and is designed for Artificial Intelligence of Things (AloT).

Automatic 7x7 levelling

Through intelligent algorithms, a virtual elevation map is automatically calculated.

Scratch-resistant PEI magnetic building plate

The M5's build plate is scratch-resistant due to a PEI coating. Thanks to the magnetic base, you can easily remove the build plate to remove the printed models after cooling. All you have to do is bend the flexible build plate a little. After you have removed the model from the building plate, you can easily put it back in place.

Colourful 4.3-inch touchscreen

The 4.3-inch colour touchscreen is extremely easy to use. The user-friendly LCD touchscreen can also be switched to night mode.

Helpful tools for worry-free printing

►AI Camera System: Before you even start printing, the 3D data of your model is analysed by AnkerMake Slicer. The AI recognition system continuously checks on the entire printing process.

►Error detection: If errors are detected, you will get an error message.

►Recovery in case of power failure: In case of power failure, your print progress will be saved as well as continued after recovery. Just unplug it, reconnect the printer to power and that's it!

►Live monitoring via AnkerMake app: Round the clock and in real-time. Also possible in the dark thanks to the adaptive light detection algorithm.

►Share time-lapse videos on social media with your friends!

►Print location-independent: Whether via AnkerMake App on your smartphone or tablet, or in AnkerMake Slicer on your PC - you can easily set or change parameters anywhere! The whole thing also works with Alexa! ;)

►Print Status Notification: You can get information about your printing status in different ways: via LED indicator at 10 meters distance, via beep or an app notification. It couldn't be easier!

Integrated HD Smart Cam

The integrated camera has a full HD resolution of 1080 pixels. It allows real-time monitoring with a resolution of up to 720 pixels, as well as time-lapse videos in 1080p resolution.

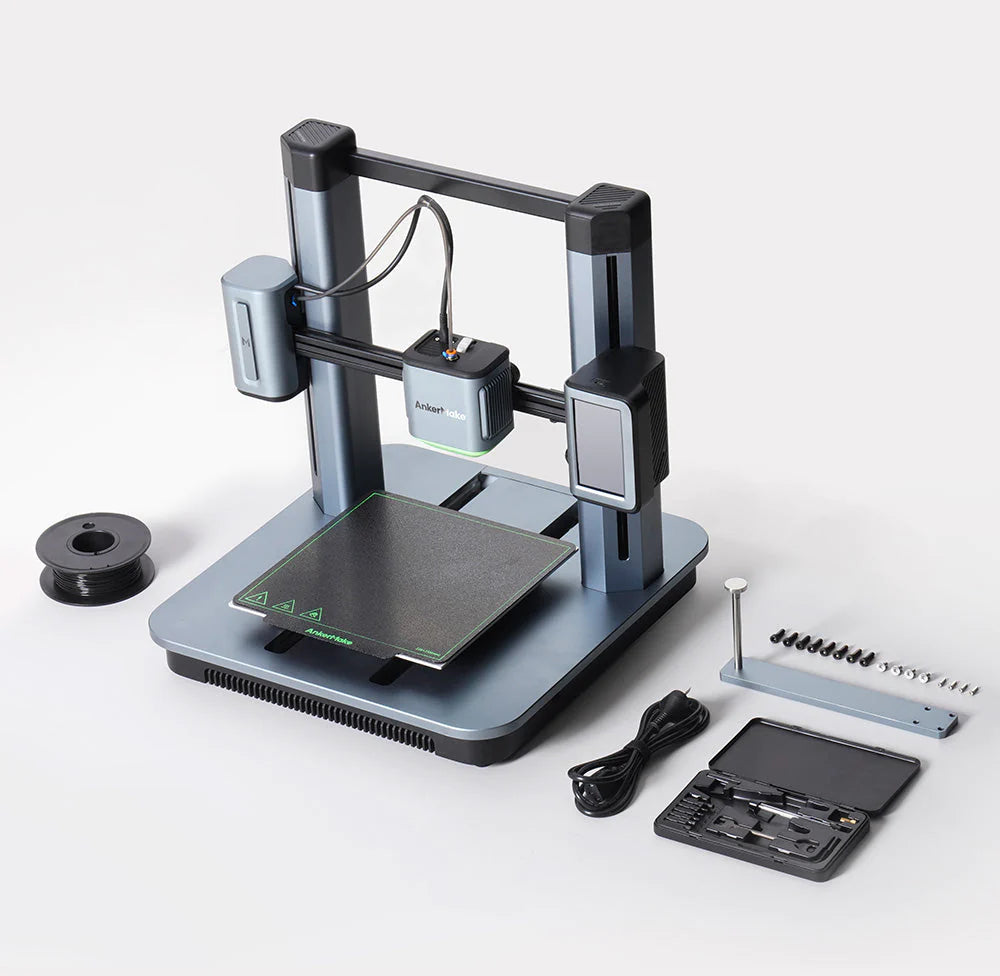

Assembly is child's play

You don't have to be an engineer or a magician to put the M5 together. It only takes you 15 minutes to take out the accessories, tighten the screws on the bottom, and get started!

Tip: Did you know you're even doing something good for the environment with AnkerMake's M5? Due to the fact that the print time has been reduced, the power consumption also decreases!
