3D MakerPro Whale 3D Scanner Standard
3D MakerPro Whale 3D Scanner Standard
Two cores for greater accuracy at high resolution
The Whale Scanner features two independent cores for ultra-high accuracy of up to 0.05mm. The dual cores allow complex shapes and surfaces to be scanned quickly, creating models with an HD scanning resolution of 0.2 mm. The Whale Scanner can be used to capture both large components and small details.
Dual cores in comparison:
Micro core |
broad core |
|
Accuracy | 0.05mm | 0.1mm |
Resolution | 0.2mm | 0.5mm |
Working distance | 300±100mm | 650±250mm |
Single Capture Range | 200x100mm | 530 × 370mm |
Brightness-independent scanning
The Whale Scanner scans in any light: regardless of whether you need it outdoors in full sunshine, or your scan object is a dark colour - the Whale Scanner captures them all! Even objects in black colour can be scanned easily.
Possible applications and examples
Its precision accuracy and high resolution make the Whale Scanner suitable for many applications, especially those that require a high level of complexity.
► Reverse engineering:
- Precise reconstruction of CAD models,
- Redesign, repair and redefine existing designs.
► Highly specialised tasks in the areas of crime scene investigation, archaeology and historical research:
- Precise reproduction of the shape and colour of various objects (furniture, evidence, relics, etc.),
- Captures even the smallest prints.
► Medical applications:
- Precise scan of the human body or its individual parts in seconds,
- Ideal for personalised healthcare solutions,
- Especially for plastic and rehabilitative surgery (pre- and postoperative analysis).
JMStudio
JMStudio is 3DMakerpro's exclusive software that converts captured scan data into 3D models. The user-friendly software supports standard output formats such as OBJ, STL, ASC and PLY, and is compatible with popular professional software:
Other features:
- Stop and start button for a convenient scanning process
- 2 m long 2-in-1 data and power cable
- No scanning of markers
- Scan speed of 10 images/sec.

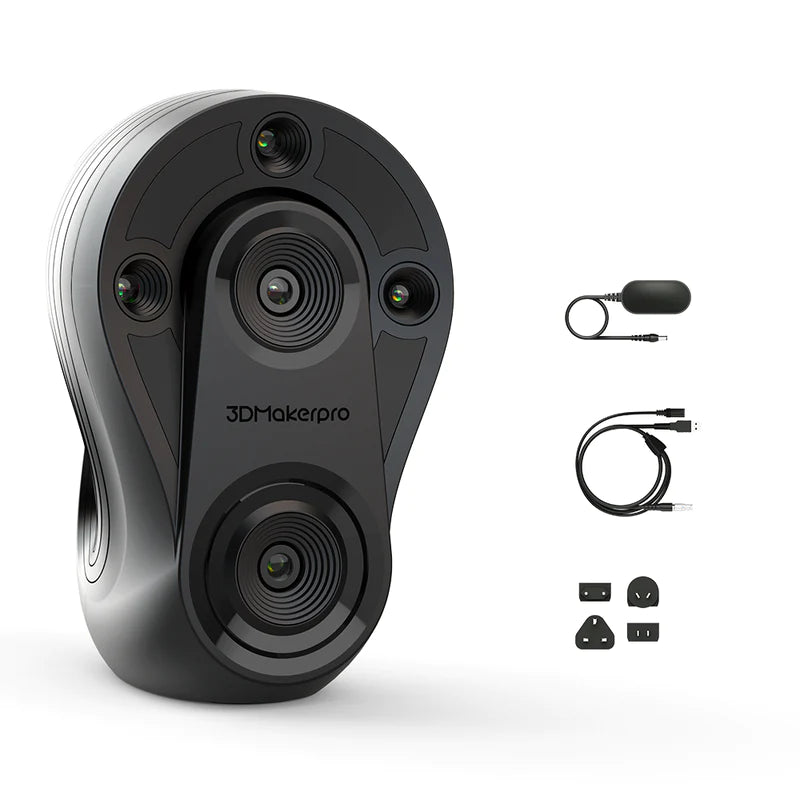

Included in delivery of the Whale standard:
- 1 x Whale 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
Included in delivery of the Whale Premium:
- 1 x Whale 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
- 1 x tripod
- 1 x Turntable Kit
Included in delivery of the Whale Luxury:
- 1 x Whale 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
- 1 x tripod
- 1 x Turntable Kit
- 1 x Colour Kit
